Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System

    Buy cheap Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System from wholesalers

    Buy cheap Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System from wholesalers
    • Buy cheap Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System from wholesalers

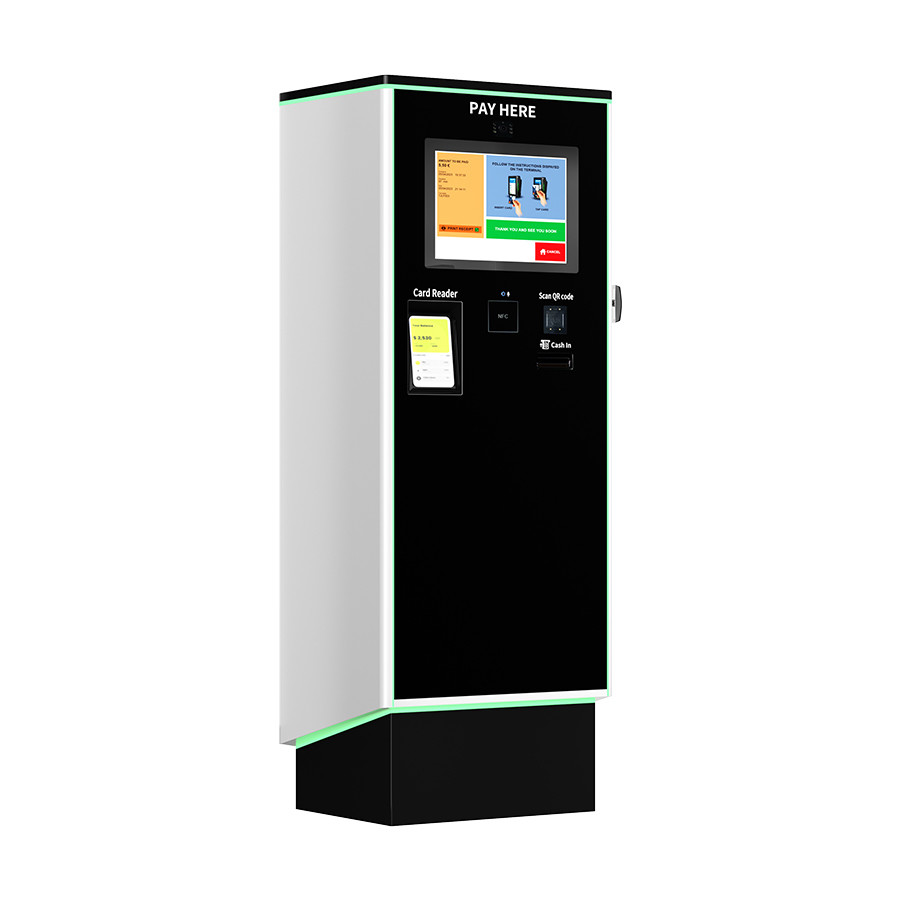

    Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System

    Ask Lasest Price
    Brand Name : Realpark
    Model Number : RPL-POF-PS01
    Certification : CE and ISO9001
    Price : Welcome to contact us!
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 100sets/Month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System

    Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System


    The Digital Parking Payment Kiosk features a 19.1" LCD and incorporates a Smart ANPR (Automatic Number Plate Recognition) system for efficient parking ticket management. This advanced solution streamlines the payment process, enhances security, and improves the overall user experience in parking facilities.

    Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System


    Auto Pay Station Configuration POF
    No.ModuleSpecificationsTechnical Parameters
    1Main control moduleSpecifyMotherboard: 10 RS-232 ports, 8 USB ports, 2 1000M network ports,
    Display interface: 1VGA+1HDMI, integrated sound card, graphics card, network card, USB;
    CPU: Intel I5 4th generation;
    Memory: 4G,
    Hard disk: SSD 120G.
    2Host chassis + power supplySpecify400W power supply
    3Display capacitive touch integrated screenSpecifyThe screen size is 19 inches, the response time is 6ms, the brightness is 260 Nits, the contrast ratio is 700:1, and the viewing angle is 130 degrees horizontally and 110 degrees vertically.
    4Banknote circulation moduleSpecifyHigh capacity, high security bill validator
    Proven field reliability
    Easy maintenance with free firmware updates
    Lockable, removable cash drawer for up to 1000 notes
    Superior performance - auto-centering technology straightens notes before reading
    Accepts notes up to 85mm wide and standard industry barcode tickets
    Power supply:Required: 12V Standby: 400mA Running: 1.5A Peak: 3A
    Protocol: SSP IF003 ccTalk
    MDB Interface: USB RS232
    Open Collector:Frame Options
    Standard Frame: Metal Frame Self-aligning Frame Various lighting options
    Cash drawer options: 500 notes 1000 notes
    Note sizes:Width: 60 - 85mm Length: 115 - 170mm
    MCBF: 200,000
    5POS three-in-one card readerSpecifyReserved space for adding cover plate (model specified)
    Pax-IM30, please check the 2 bank card POS machine data sheets in the PDF file
    6Barcode scanningSpecifyImage sensor: 1280H800V
    Field of view: 43° horizontal, 50° diagonal, 28° vertical
    Read rate: 50ms
    Decodable symbols: 2D QR code, etc.
    1D: UPC/EAN/CODE128/CODE32/CODE39/CODE93/UCC/UPCA, etc.
    Reading accuracy: 5 mil
    Reading distance: CODE 39 (12 mil): 20cm-55cm, UPC-A (16 mil): 10cm-60cm, QR code (payment code): 5cm-130cm
    Contrast: >25%
    Deflection angle: horizontal ±55°, vertical ±55°, rotation 360°
    Reading mode: trigger/sensing/continuous
    Communication interface: Standard: USB, optional: TTL/RS485/RS232
    Dimensions: length, width, height (65mm, 64mm, 29mm)
    Weight: 36g
    Operating voltage: 4.75V-12.6V
    Rated power: 0.80W
    Operating current: 160mA
    Standby current: 90mA
    Reading material: screen, paper, metal, PVC film
    Indicator: two-color indicator
    7Intercom systemSpecifyIntercom (to be confirmed later)
    8Printer moduleSpecifyPrinting method: Line thermal printing
    Print density: 8 dots/mm
    Printing direction: Paper feed direction
    Printing speed: 150 mm/sec (max)
    Paper width: 79.5±0.5 mm
    Effective printing width: 72 mm
    Paper handling: Automatic paper cutting
    Line width: 3.75 mm
    9Coin circulation moduleSpecifyFive structural parts are reserved for sealing
    Mixed coin hopper and recycler
    Requirement: 24V Standby: 200mA Running: 3A
    Peak: 6.5A
    Protocol: SSP ccTalk
    Interface: USB option open collector
    Coin size: 18 - 28.5mm Thickness: 1.65 - 3.2mm
    Coin capacity: 1500 (€1) or 1300 (£1) or 800 (£2)
    Multiple denominations: up to 11 denominations
    Mixed coin capacity: 200 (€2) + 750 (€1) + 500 (50c)
    Payout speed: up to 12 coins per second
    MCBF: 200,000
    10Alarm moduleSpecifySecurity warning system (access control device + control board + sensor + alarm)
    11LED lightSpecifyOne set of breathing lights, one set of blue lights (with control board)
    12Combined power supply moduleSpecifyProvide 12V, 24V (110V 50HZ) power for printers and other components
    13Sound effect systemSpecifyOne on each side, effective output 25W.
    14Cooling systemSpecify4 fans with dust screen
    15Tempered glass panelSpecifyThickness: 3mm
    16Banknote and coin password safeSpecifyFactory settings: User password "1111", Administrator password "00000000".
    Unlock: Enter the password you set, the password length should be 4-10 digits (if not set, please use the factory password). Each digit entered will have a sound prompt to indicate validity. After entering the password, press the OK button
    17UPS power supply moduleSpecify1000VA, USB interface, with program control
    18Complete machine cabinet (outdoor powder)SpecifyHall-style structure, with hot steel plate on the outside. Thickness of the whole machine shell: 1.5-2.0mm Appearance: novel, beautiful, and noble; Material: hard and thick, not easy to deform; Internal structure: modular maintenance method, simple and convenient maintenance; wiring is standardized and neat. Contains safe. Universal key for cabinet. (Note outdoor powder)
    19Complete machine cabinet multi-point linkage lockMechanical multi-point lockMulti-point lock for whole cabinet
    20Complete machine accessoriesCircuit breakers, socket strips, wires, etc.
    21Communication methodTCP/IP Method

    Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System


    Digital Parking Payment Kiosk Features:

    • 19.1" LCD Display: High-resolution screen provides clear instructions and an interactive interface for users, facilitating easy navigation.
    • Smart ANPR Technology: Automatically recognizes and processes vehicle license plates, enabling quick entry and exit for authorized vehicles.
    • Multiple Payment Options: Supports various payment methods, including credit/debit cards, mobile wallets, and cash, ensuring flexibility for users.
    • User-Friendly Interface: Intuitive design guides users through the payment process, reducing wait times and confusion.
    • Real-Time Transaction Processing: Instantly processes payments and updates parking status, providing accurate information to users and operators.
    • Durable and Weather-Resistant Design: Built to withstand various environmental conditions, making it suitable for indoor and outdoor installations.
    • Integrated Receipt Printer: Automatically issues parking tickets or receipts upon successful payment, ensuring users receive documentation.
    • Remote Monitoring Capabilities: Allows operators to oversee system performance and transaction data from any location for efficient management.
    • Comprehensive Reporting Tools: Generates detailed reports on financial transactions and usage patterns for better operational insights.
    • Customizable User Experience: Allows for branding and personalized messages displayed on the kiosk to enhance user engagement.

    Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System

    19.1" LCD Smart ANPR Parking Ticket System

    Benefits:

    • Enhanced User Convenience: Streamlined payment options and intuitive interface improve the overall user experience.
    • Operational Efficiency: Real-time data processing and remote monitoring enhance resource management and decision-making.
    • Increased Security: ANPR technology minimizes unauthorized access, ensuring a safer environment for users and their vehicles.Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System

    Parking Ticket Payment Machine

    Applications:

    • Public Parking Lots
    • Shopping Malls and Retail Establishments
    • Airports and Transit Stations
    • Event Venues and Stadiums
    • Corporate Campuses and Institutional Parking Areas

    Digital Parking Payment Kiosk With 19.1" LCD Smart ANPR Parking Ticket System


    Car Plate Recognition System Automatic Pay Station FAQ


    Q1: What is the primary function of the Digital Parking Payment Kiosk?
    A1: It facilitates parking payments and automates vehicle recognition to streamline access control.


    Q2: How does the ANPR technology work?
    A2: The ANPR system automatically reads and processes vehicle license plates for quick identification.


    Q3: What payment methods does the kiosk support?
    A3: The kiosk accepts credit/debit cards, mobile wallets, and cash, offering flexible payment options.


    Q4: Is the interface easy to use?
    A4: Yes, the 19.1" LCD provides a user-friendly design that guides users through the payment process.


    Q5: Can this kiosk operate outdoors?
    A5: Yes, it is designed to withstand various outdoor conditions, making it versatile for different environments.


    Q6: Does the system print parking tickets?
    A6: Yes, it includes an integrated printer that issues receipts or parking tickets upon payment.


    Q7: How does real-time transaction processing work?
    A7: The system processes payments instantly and updates transaction records and parking availability immediately.


    Q8: Can operators monitor the kiosk remotely?
    A8: Yes, operators can access performance data and transaction history from remote locations.


    Q9: What reporting features are available?
    A9: The kiosk provides detailed reports on financial transactions and usage patterns for operational analysis.


    Q10: How can I acquire the Digital Parking Payment Kiosk?
    A10: You can request a quote through our website or contact our sales team for customized solutions.


    The Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System is an innovative solution designed to enhance parking management by providing efficient ticket processing and payment options, ensuring a smooth experience for users and operators alike.
