    LPR Camera Parking Controller ANPR Access Control Systems With P3 LED Display

    Ask Lasest Price
    Brand Name : Realpark
    Model Number : RPL-YY04
    Certification : CE and ISO9001
    Price : Welcome to contact us!
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 set/Month
    Delivery Time : 2-3 weeks
    • Product Details
    • Company Profile

    LPR Camera Parking Controller ANPR Access Control Systems With P3 LED Display

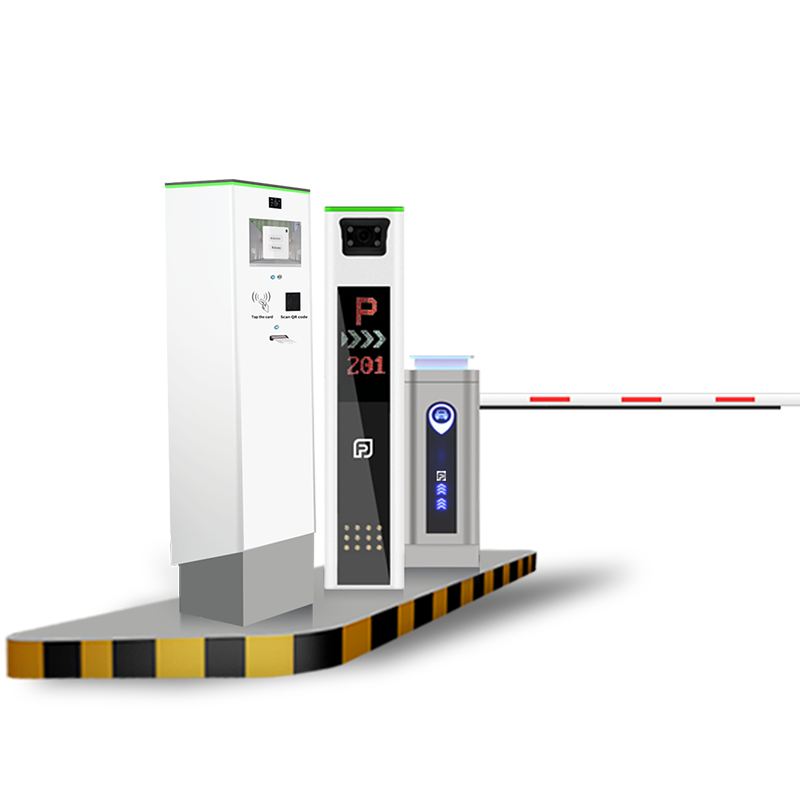

    LPR Camera Parking Controller with P3 full-color LED Display All-in-one Machine


    The RPL-YY04 is an advanced all-in-one parking management solution that integrates a License Plate Recognition (LPR) camera with a vibrant P3 full-color LED display. This innovative device is designed to enhance parking efficiency and security for various environments, including commercial parking lots, residential complexes, and event venues.


    Pro33-9


    Specification
    Part NumberRPL-YY04
    LED ScreenSizeL192cm*H384cm
    (P3 full-color LED eight-line display)
    ResolutionTwo Pieces of Single LED module 64*64 Dot-matrix
    Car License Plate CameraPicture Output2 Million/3 Million/4 Million Mixel JPEG
    Minimum illumination0.01Lux
    ApertureFixed Aperture
    Focal Length6mm
    Storage InterfaceSupport SD2.0 Standard
    Micro SD(TF) Card, Max 32G
    Wide Dynamic Range≥100dB
    X04 Main BoardVoiceRemind Temporary Cars and Vip Cars,
    Welcome to you, Have a nice day, etc.
    ShowSupport Multi-LED Module
    Barrier GateVoltageAC220V±10%,50Hz/60Hz
    Motor TypeThe Sixth Generation Brushless DC Motor
    Working Temperature-20°C~ +70°C
    Ambient Humidity5% to 95%
    Fixed DirectionCan be interchanged left and right
    (Need to add accessories)
    Pole Length≤ 6 meters straight/curved pole
    ≤ 5.5 meters two columns
    ≤ 4.5 meters three columns
    Input SignalOpen, close, stop, ground sense, anti-smashing
    Motor Power100W
    Remote Control Frequency430Mhz
    General ParametersProtection ClassIP42,Certain Dustproof and Waterproof
    Operating Temperature-10℃~60 (Optional Thermostat)
    Working Humidity5%~85%
    Power Consumption160W MAX
    Equipment Size285*253*1563mm(Width*Thickness*Height)
    Weight≈50kg
    Pro33-8

    RPL-YY04 Integrated Barrier Gate Ticketless Parking Controller

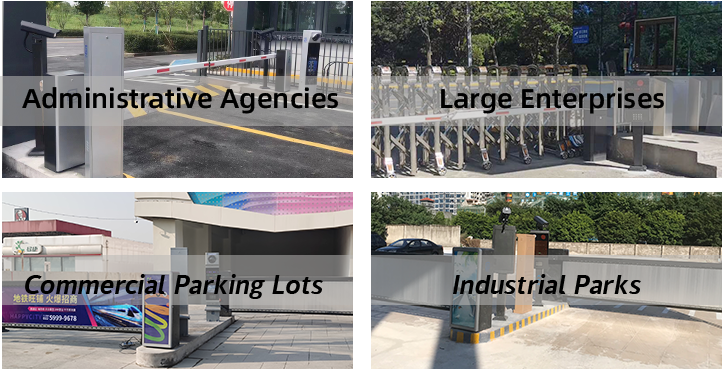

    RPL-YY04 is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, L192cm*H384cm (P3 full-color LED eight-line display), single LED display in the One. Module 64*64 dot matrix resolution. RPL-YY04 license plate recognition all-in-one machine is a high-end license plate recognition controller product carefully designed by Realpark. The system supports mobile payment, non-inductive payment, dynamic QR code scanning for unlicensed vehicles to enter and exit, LCD screen custom leisure time advertisements, electronic coupons, electronic invoices and other functional features, which can meet the requirements of pure license plates in the parking lot. Identify the system application environment to facilitate on-site installation, commissioning and maintenance.It is widely applicable to the following scenariosPro33-12 (2)

    The product has a unique appearance and strong performance, giving people a sense of low-key, luxury, calm and grandeur

    The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, white and black brings you a more shocking vision.

    Recognition Widely License plate recognition algorithm exception handling function is powerful

    Using the deep learning license plate recognition algorithm independently developed by Realpark, the accuracy rate of license plate recognition can reach more than 99%.


    The image processing unit cooperates with intelligent exposure compensation technology to capture the optimal picture for identification in complex lighting environments such as strong light, weak light and backlight.


    For license plate recognition under abnormal phenomena such as no license plate, defaced license plate, trouble license plate, and bad weather environment, the system will start the abnormal processing or fuzzy matching function to optimize the recognition results


    Support Multiple parking solutions Wide Range of Applications

    At present, we provide LPR parking, ticket parking, RFID card parking, UHF parking and other separate parking solutions, and can also be used in combination with two or more solutions. We provide the best parking solution according to your actual project needs.


    Smart parking solutions make unattended parking the trend of the future. Car owners use license plate recognition to enter and exit the parking lot through the parking lot for electronic payment, central payment, cash payment, or credit card payment. Background management personnel use the platform for round-the-clock monitoring and maintenance. The Realpark parking management system greatly reduces labor costs and maintenance costs, and also improves management efficiency.

    Pro33-13

    Self-Developed Software and Hardware Intergrated Platform, More Perfect Performance, Support Customization

    The self-developed license plate recognition all-in-one machine and Realpark license plate recognition parking management system are connected together to improve the intelligent level of equipment, reduce the difficulty of parking lot management, strengthen the emergency response capability of the parking lot, and reduce operating costs. Compared with the traditional parking management system, the management efficiency is higher, the cost is lower, and the application is more abundant.


    Self-developed software, hardware and cloud platform, more perfect performance, support special function customization.

    Pro33-17
